TBTACZ-HWT
TBTSCIETECH
| État de disponibilité: | |
|---|---|
This Hamburg Wheel Tracker Determination of rutting and water sensitivity of Hot Mix Asphalt (HMA), permanent deformation of asphalt mixture under moving load, by measuring the rutting depth of asphalt mixture and the number of loading times at failure, to determine due to aggregate structure Insufficient binder strength or early damage caused by water damage can be used to evaluate the effect of water damage on asphalt mixtures because the specimens can be immersed in water at a certain temperature throughout the test.
This Hamburg Wheel Tracker Determination of rutting and water sensitivity of Hot Mix Asphalt (HMA), permanent deformation of asphalt mixture under moving load, by measuring the rutting depth of asphalt mixture and the number of loading times at failure, to determine due to aggregate structure Insufficient binder strength or early damage caused by water damage can be used to evaluate the effect of water damage on asphalt mixtures because the specimens can be immersed in water at a certain temperature throughout the test.
1.Computer control, easy to operate.
2.Using high-precision displacement sensor, the accuracy is better than ±0.01mm under large range.
3.Automatic temperature control, automatic generation and storage of test results.
4.Adopt absolute temperature sensor to collect temperature, with wide temperature control range, high precision and good stability.
5.Adopt PWM modulation mode for temperature PID control to ensure no overshoot of temperature.
6.Linear modulation of temperature sensor and displacement sensor can ensure linearity within full scale.
7.The data collection method is to collect 11 points in the area of 210mm symmetrical to the center of the test mold to obtain the average deformation, which is used as deformation value when calculating the test results.
8.Stop tests by stopping according to the number of laps or stopping OR according to the depth of the rut.

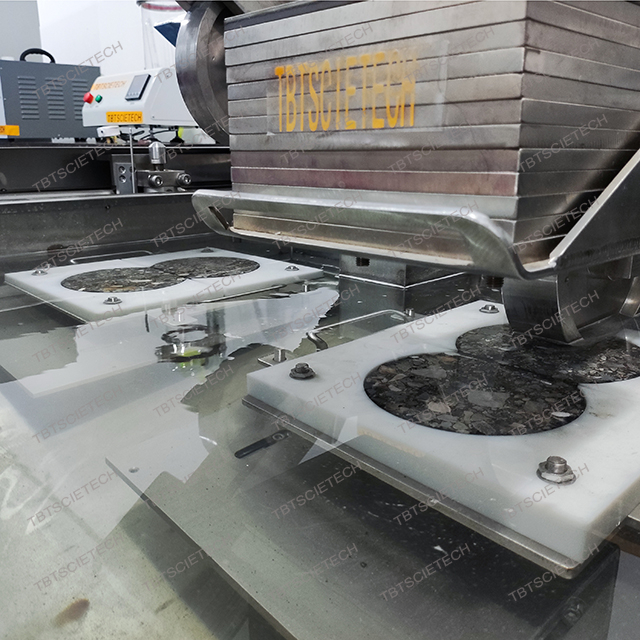

9.Using an open working platform, the test wheel can be lifted automatically, which is convenient for installation and removal of the test mold.
10. The whole machine is made of high-quality stainless steel, beautiful and easy to clean.
1.Computer control, easy to operate.
2.Using high-precision displacement sensor, the accuracy is better than ±0.01mm under large range.
3.Automatic temperature control, automatic generation and storage of test results.
4.Adopt absolute temperature sensor to collect temperature, with wide temperature control range, high precision and good stability.
5.Adopt PWM modulation mode for temperature PID control to ensure no overshoot of temperature.
6.Linear modulation of temperature sensor and displacement sensor can ensure linearity within full scale.
7.The data collection method is to collect 11 points in the area of 210mm symmetrical to the center of the test mold to obtain the average deformation, which is used as deformation value when calculating the test results.
8.Stop tests by stopping according to the number of laps or stopping OR according to the depth of the rut.
9.Using an open working platform, the test wheel can be lifted automatically, which is convenient for installation and removal of the test mold.
10. The whole machine is made of high-quality stainless steel, beautiful and easy to clean.
Displacement sensor | 0~30mm |
Displacement accuracy | ±0.01mm |
Temperature range | room temperature~80℃ |
Test wheel | φ203.2mm x 47mm |
Test speed | 15~55 (times/min) |
Walking distance | 230±10mm |
Power supply voltage | 380VAC 50HZ |
Dimensions | Around 1400x1600x1400 (mm) |
Test time | 0~480(min) |
Test times | 0~30000 (times) |
Specimen size | 400mm×300mm×50mm 300mm×300mm×50mm |
Cylindrical mould as per standard | |
Working method | water immersion test |
Temperature measurement channel | 2 channels |
Machine power | 8KW |
Overall weight | Around 500 KG |
Data Output | Sample Inflection Point(SIP) Creep Slope/Stripping Slope Rut Depth Profiles Temperature Export to Microsoft Excel |
Software Compatibility | Microsoft Windows XP,Vista7、8 and 10 |
Displacement sensor | 0~30mm |
Displacement accuracy | ±0.01mm |
Temperature range | room temperature~80℃ |
Test wheel | φ203.2mm x 47mm |
Test speed | 15~55 (times/min) |
Walking distance | 230±10mm |
Power supply voltage | 380VAC 50HZ |
Dimensions | Around 1400x1600x1400 (mm) |
Test time | 0~480(min) |
Test times | 0~30000 (times) |
Specimen size | 400mm×300mm×50mm 300mm×300mm×50mm |
Cylindrical mould as per standard | |
Working method | water immersion test |
Temperature measurement channel | 2 channels |
Machine power | 8KW |
Overall weight | Around 500 KG |
Data Output | Sample Inflection Point(SIP) Creep Slope/Stripping Slope Rut Depth Profiles Temperature Export to Microsoft Excel |
Software Compatibility | Microsoft Windows XP,Vista7、8 and 10 |
